VELUX Sun Tunnels
The VELUX Sun tunnel Skylight uses an adaptable reflecting tube to direct daylight into every corner of your home.
- Up to 98% daylight reflectivity in optimal daylight conditions
- Quick and easy installation
- Flexible installation around beams and restricted space
- It’s easy to get started
All prices include GST
Price range
Price range: $287.00 through $781.00Overview
Sun Tunnels

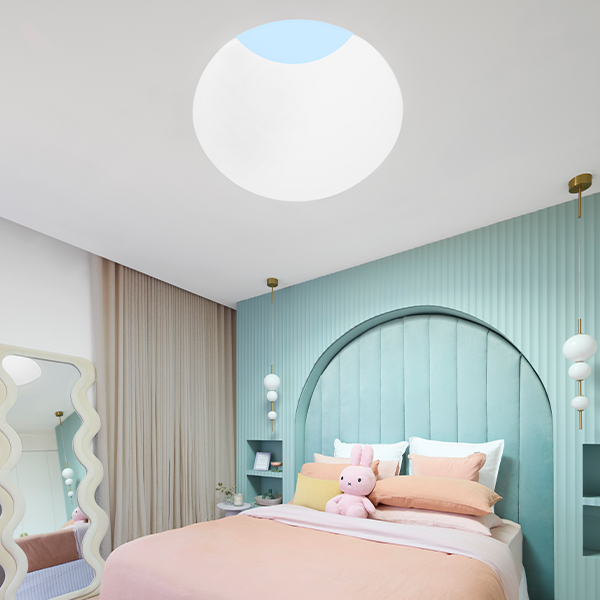

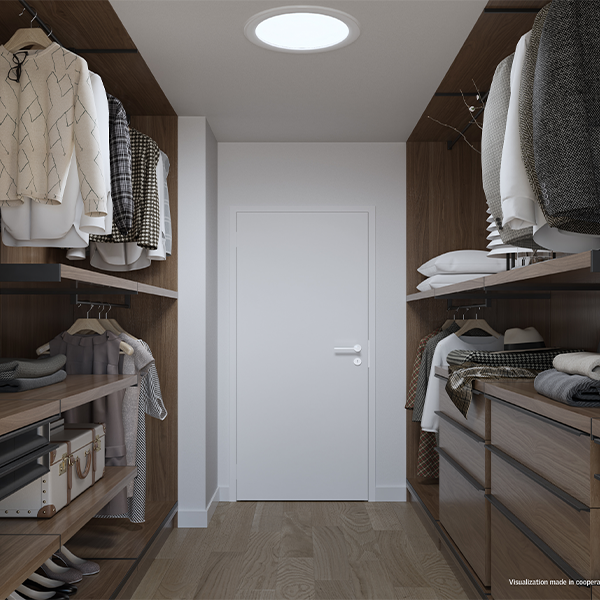

Add natural light to spaces where you never felt it was possible with VELUX sun tunnels. Perfect for windowless bathrooms, walk-in wardrobes and hallways
The VELUX Sun tunnel Skylight uses an adaptable reflecting tube to direct daylight into every corner of your home. The effect is brighter and more comfortable living areas.
- Up to 98% daylight reflectivity in optimal daylight conditions
- Quick and easy installation
- Flexible installation around beams and restricted space
- It’s easy to get started

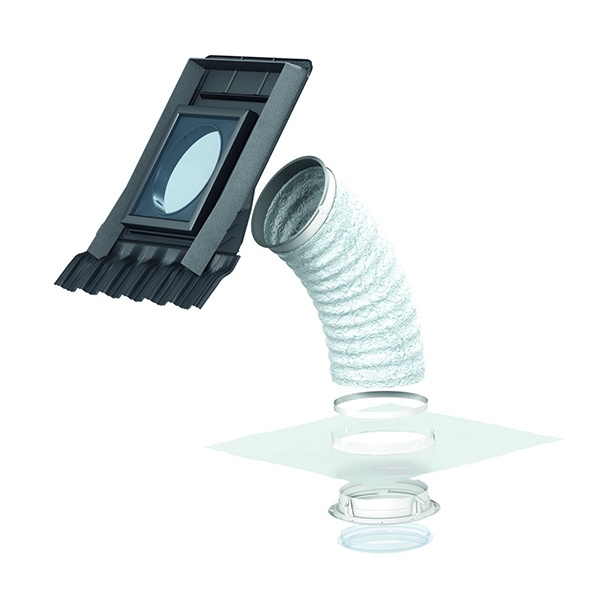

Flexible Sun Tunnel (TWF)
Flexible tunnels are recommended when installation around obstacles within the roof space is required. They are the easiest product to install because of the maneuverability of the material.
- Suitable for roof pitches from 15°–60°
- Excellent for ease and speed of installation
- Easily bends around attic obstructions
- Ideal for shorter tunnel lengths
- Standard tunnel length of 2.0m provided

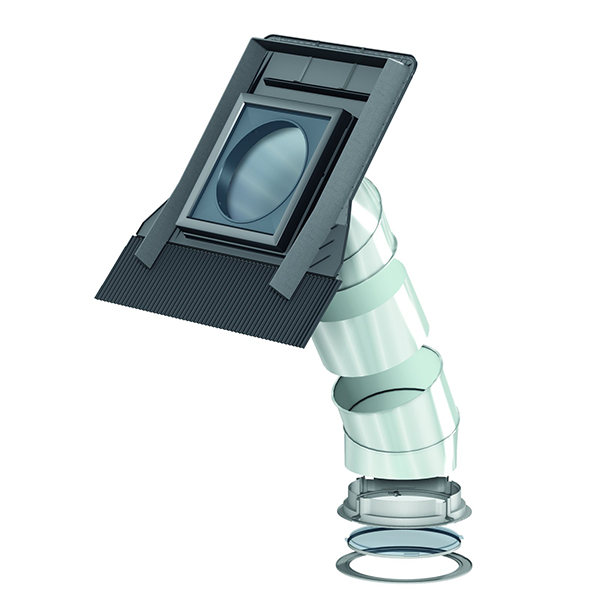

Rigid Sun Tunnel (TWR)
Rigid tunnels are best used when there is an unobstructed path from roof to ceiling and for longer tunnel lengths.
- Suitable for roof pitches from 15°–60°
- Flexi Loc tunnel systems for easy and speedy tunnel assembly
- Pack includes 2 ‘elbow’ sections providing up to 45° bend.
- Standard tunnel length of 1.65m provided – 1240mm extensions available at extra cost (ZTR 0K14)
- Excellent for long tunnel lengths – up to 6m

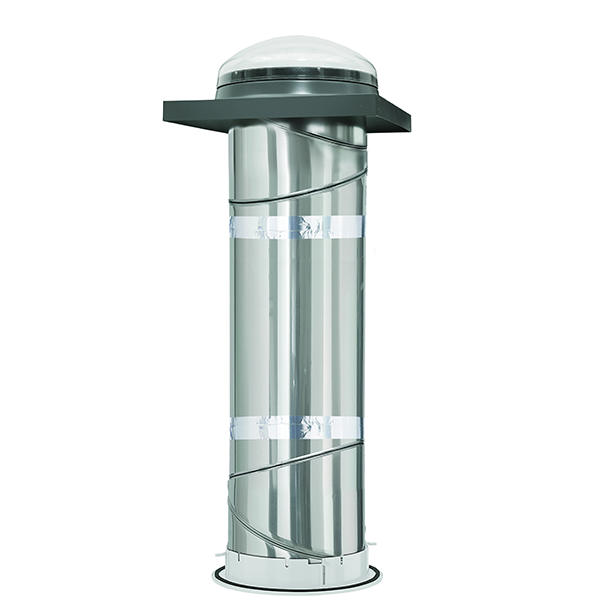

Rigid Sun Tunnel (TCR)
Rigid Sun tunnel TCR is perfectly suited for unobstructed paths from roof to veiling.
- Suitable for roof pitches from 0°–60°
- Use where ceiling to roof distance is typically between 0.3m-1.1m (up to 6m with extension ZTR)
- Includes 2 ‘elbow’ sections providing up to 45° bends
- Stylish, stabilised dome; curb mounted roof base
- Custom made flashing required (not supplied by VELUX)
Less Time in Attic
Roof module with removable sash ensures quick and easy installation from the outside. Drop the tunnel into place from the roof. There’s little need to enter the attic; the tunnel is easy to install in tight spaces where attic access is difficult.
Easy to Install & Clean
The VELUX Sun Tunnel is easier to install thanks to the threaded diffuser. When you’re finished, simply screw the diffuser into place. And, as an added bonus, it’s easier to clean as it can be unscrewed and cleaned as needed.
Low Roof Profile
The outer frame has the appearance of a traditional skylight and sits flush with the roof for harmonious effect. 4mm toughened glass adds strength without the need for a bulging bubble.
Low pitch application (TCR)
Flexible pivoting ring allows for optimal angles and maximum light capture. UV stabilized Acrylic dome – toughened lens at roof level. Toughened lens for added safety.
Throughout the construction industry, VELUX is a by-word for quality, a reputation that has been painstakingly built up for more than 35 years in Australia and for over 80 years around the world.
Perfectly designed to withstand the world’s harshest climatic conditions, all VELUX products are of the highest quality and will perform superbly for a lifetime of faultless service.
Double Glazing – All VELUX skylights and roof windows use double glazing as a standard
Guaranteed to last…
10 Years – Skylight, glazing, frame, manual operators, coverings
3 Years – Blinds, electric & solar components
Skylights on display at Subiaco Restoration
Pitched Roof Skylights
FSM04 – Fixed Skylight with Honeycomb block out blinds (780x980mm)
FSM06 – Fixed Skylight with Honeycomb block out blinds (780x1180mm)
FSCD06 – Solar Skylights with Honeycomb block out blinds (550x1180mm) – Room darkening
FSCHM06 – Solar with Honeycomb block out blinds (780x780mm)
VSSM02 – Solar Powered Skylight with Honeycomb block out blinds (780x980mm)
VSSM04 – Solar Powered Skylight with Honeycomb block out blinds (780x980mm)
VSSM06 – Solar Powered Skylight with Honeycomb block out blinds (780x1180mm)
VSEC04 – Electric Skylight (550×980)
Roof Windows
GGLMK04 – Centre Pivot Roof Window (780x980mm)
GPLMK04 – Dual Action Roof Window (780x980mm)
