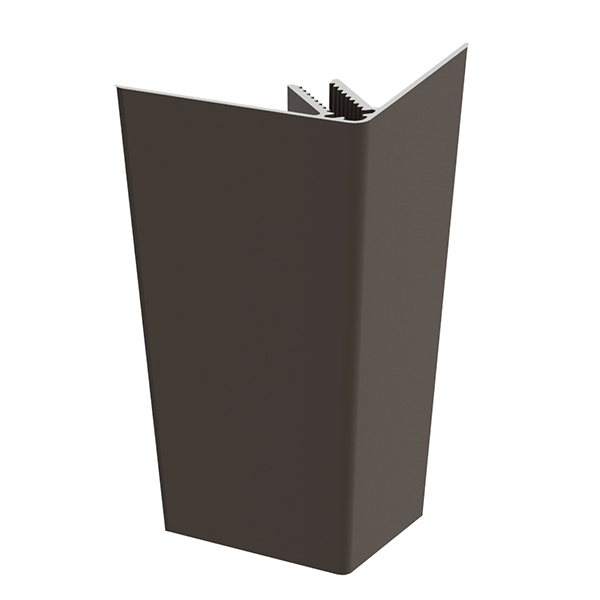

External Corner Trim Profile

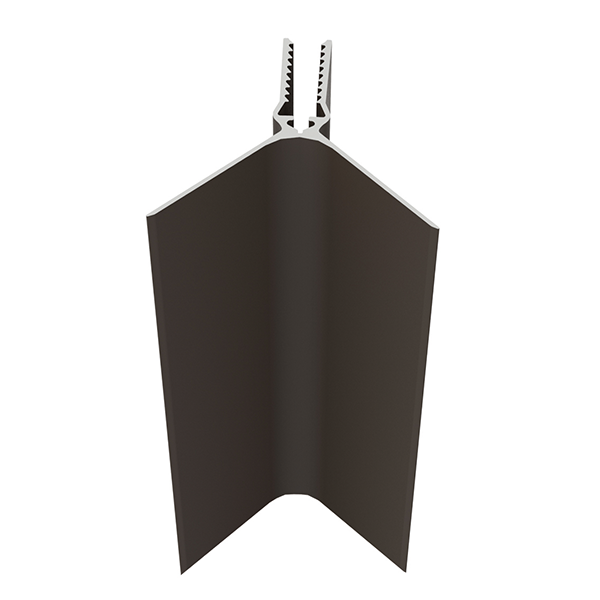

Internal Corner Trim Profile

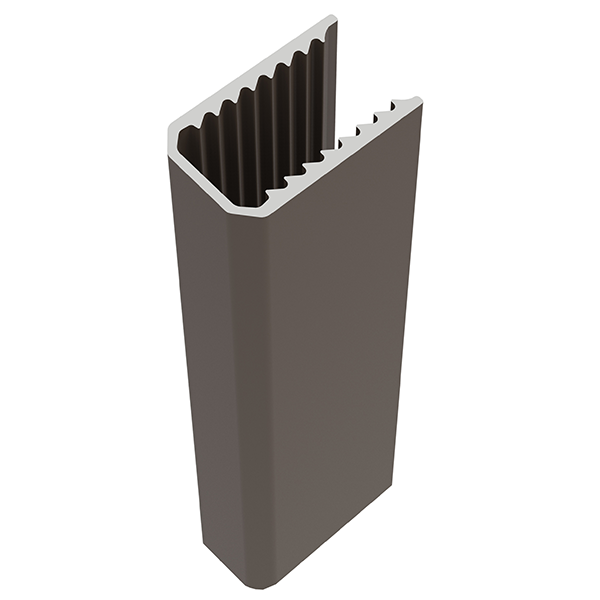

Minimal U Trim Profile

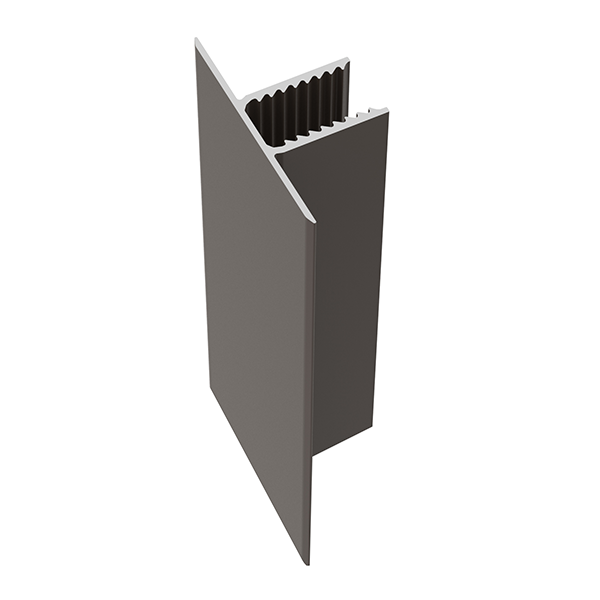

T Trim Profile

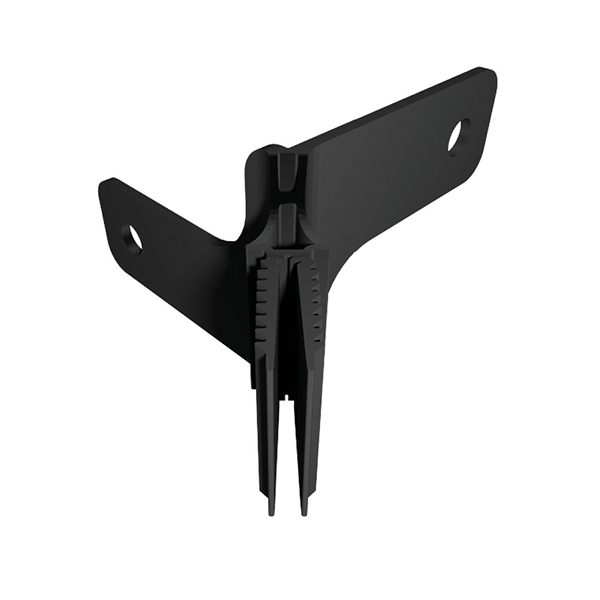

External Corner Adaptor
Vistaclad Flat Clip Strip
Vistaclad Tophat Clip Strip

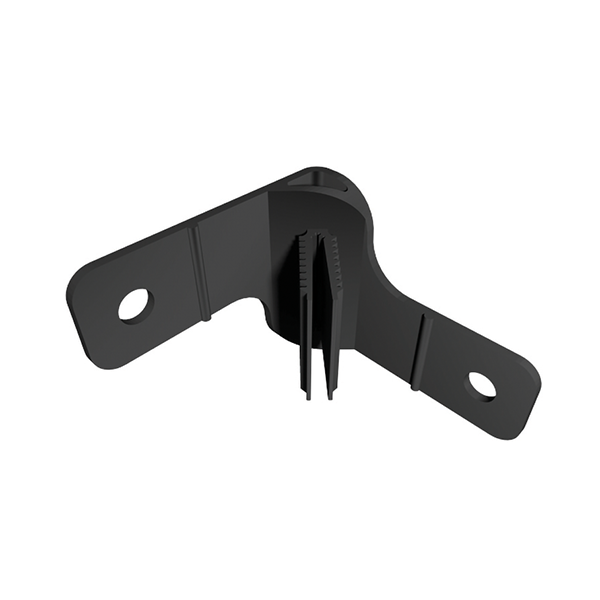

Internal Corner Adaptor

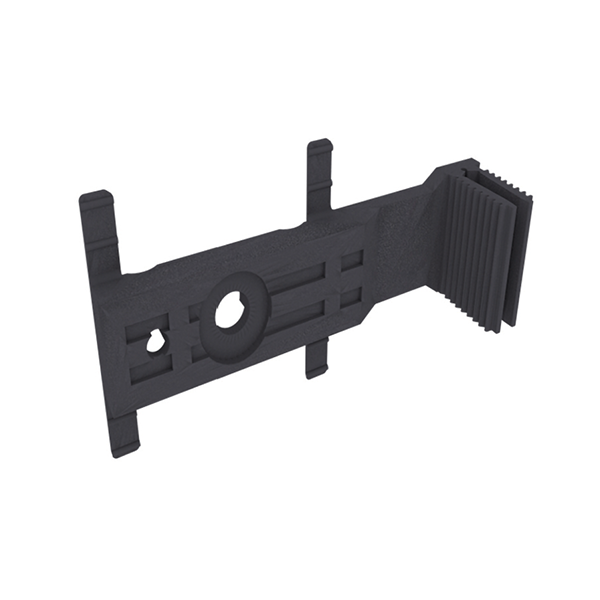

Side Adaptor

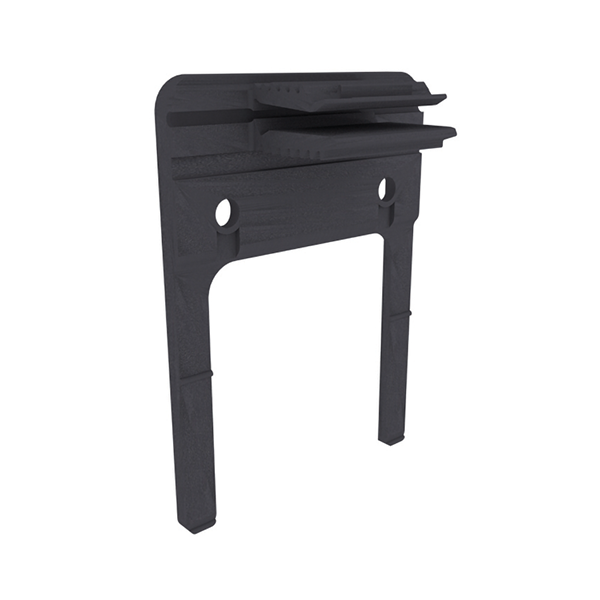

Top & Bottom Adaptor
Available Trim Colours

Eva-Last VistaClad Trims & Components

For an unblemished finish

The VistaClad system combines Eva-Last composite technologies with an innovative installation process to provide a robust and convenient cladding solution. The resultant hidden fixing generates an unblemished finish and avoids the limitations or inconvenience of fastening through composite.

All prices include GST

Price range

Price range: $12.00 through $68.00
SKU: N/A Category: Tags: , , , ,

Overview

Click here for the EVA-LAST website for more info.

THE CLIP STRIP

The VistaClad clip strip uses a punched spring design that allows the cladding boards to be easily and securely clicked into place. Three epoxy-coated, zinc-galvanised strip profile options provide flexibility in application and allow for optimal ventilation and drainage.

THE DUAL SPRING-LOADED CLIP CREATES A RIGID HOLD AND LOCKS THE BOARDS IN PLACE.

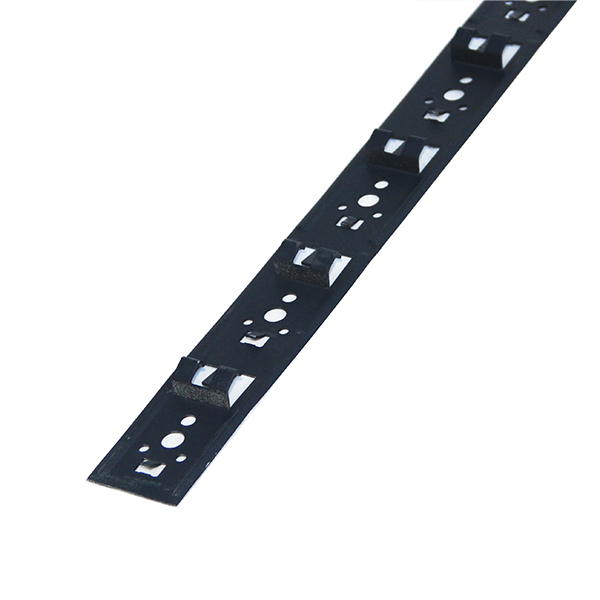

FLAT CLIP STRIP

The flat clip strip is fitted directly to the wall substrate or frame. As a result, this solution provides the smallest ventilation/drainage cavity and fixing can only be done through the face of the clip strip.

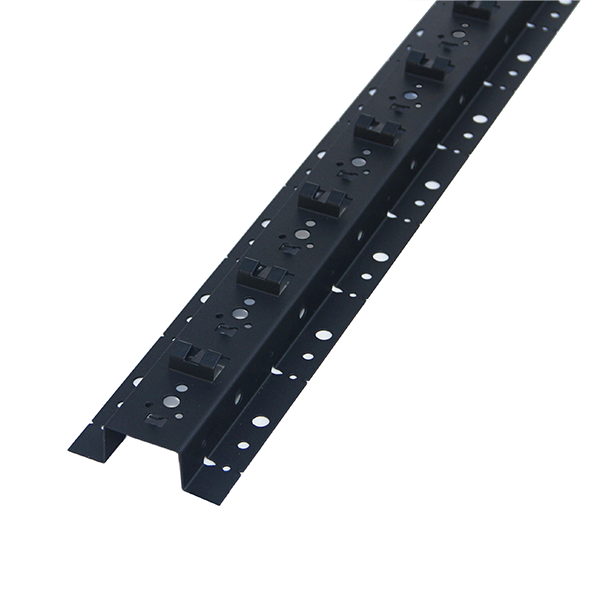

TOP HAT CLIP STRIP

The top hat clip strip fits over 38 mm (timber) and 40 mm (composite and steel) supports. As a result, the ventilation/drainage cavity will be influenced by the thickness of the support as well as the fixing method but the minimum depth the top hat profile allows for is 25.4 mm. Fixing can be done through the face, the side, and either side of the clip strip base. Fixing through the side allows for the top hat to be plumbed quickly and easily.
