Description
The ADF Clare 100S Insert wood-burning fireplace has been designed for those who appreciate both style and performance.
Beyond aesthetics, the Clare 100S Insert is engineered for efficiency and sustainability. Featuring innovative air control technology and an inner lining for optimal combustion, it ensures a cleaner burn with low emissions that meet Australia’s stringent standards. Designed to accommodate logs up to 84cm, this fireplace allows you to harness the natural heat of hardwood fuel while giving you the flexibility to adjust the burn level to your preference.
For those seeking even greater efficiency, the optional closed combustion kit allows you to use external air, making it ideal for airtight spaces.
This fireplace can be customised with a Slimline Frame, or a selection of interior [sold separately].
Specifications
Approx. firebox size 990mm (w) x 545 mm (h) x 435mm (d)
Heating capacity up to 200 m2
Weight: approx. 190 kg
Advanced firebox and closed combustion kit

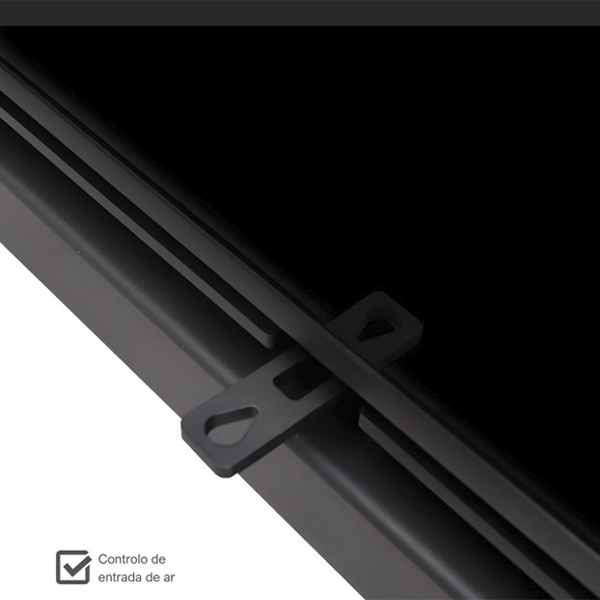

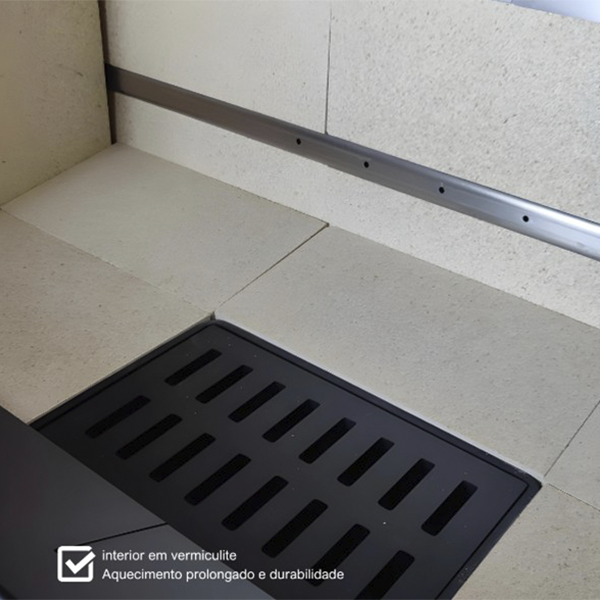

The ADF Clare 100S Insert utilises a clever air control and an inner lining to allow for clean and efficient fires. A single slider manages the primary, secondary and glass ventilation. This ensures the optimal airflow for ignition, combustion of gases, and keeping the glass clean. The inner vermiculite lining reflects heat back into the fire chamber. This enables faster heating for higher efficiency and adherence to Australia’s strict emissions standards.
The ADF Clare 100S Insert can also be easily customised with a closed combustion kit, allowing you to use outside air for efficient burning, even in airtight spaces.
High-efficiency Technology & Features
Despite its sleek, contemporary design, the ADF Clare 100S Insert retains the efficiency and easy operation ADF is renowned for. It features an internal automatic flue damper, which enhances the flue draft to minimise smoke ingress into the room during refuelling. A high-density thermal lining insulates the firebox for improved heat retention, while the advanced clean burn system pre-heats combustion air to maximise heat output. Additionally, its airflow technology ensures that solid particles and volatile gases are re-ignited and burned off, reducing emissions before they can enter the atmosphere.
ADF fires are proudly made in Portugal – changing the landscape of modern Australian fires.
- 2-speed Ventilation Kit (Fan) for even heat distribution (sold separately)
- Zero Clearance Box [sold separately] or Masonry installation
- Customise your fireplace with a Slimline 50mm 4-sided Frame, or a selection of interior [sold separately]
- Automatic flue damper

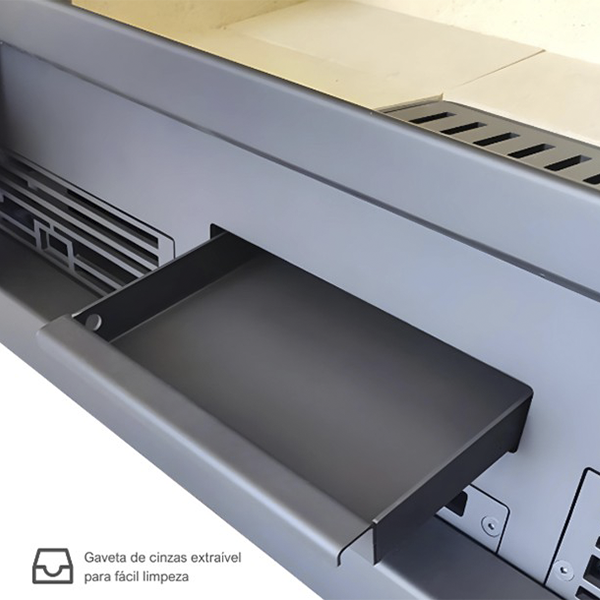

- High density vermiculite lining and ash drawer
- Single Combustion Control
- Average peak power of 16.0kW rated heat output
- Outside, bottom, or rear air intake (direct combustion system)
- Sturdy Construction: With robust, air-tight welding and durable door hinges
- Anti-condensation system
- Concealed door opening
- Screen Printed Glass Door
