Overview
5970 – 25mm width x 152mm height, Minimum Door Thickness; 36mm. 2 x hinges can take a 50kg door, 3 x hinges can take a 60kg door.

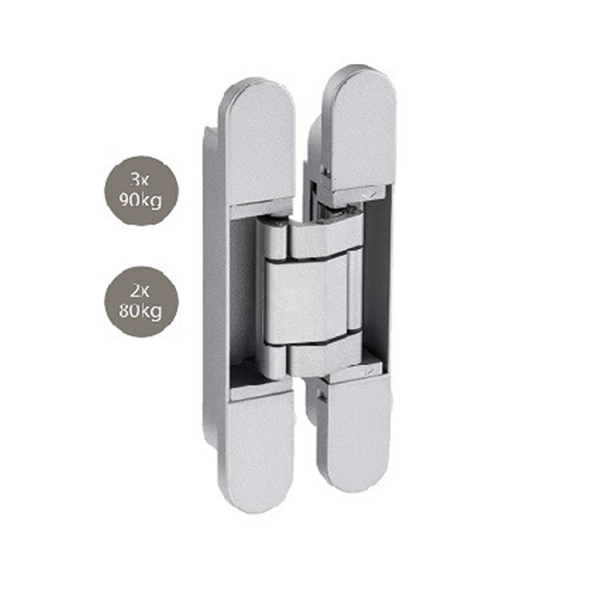

5972 – 28mm width x 177mm height, Minimum Door Thickness; 40mm. 2 x hinges can take a 80kg door, 3 x hinges can take a 90kg door.
Includes:

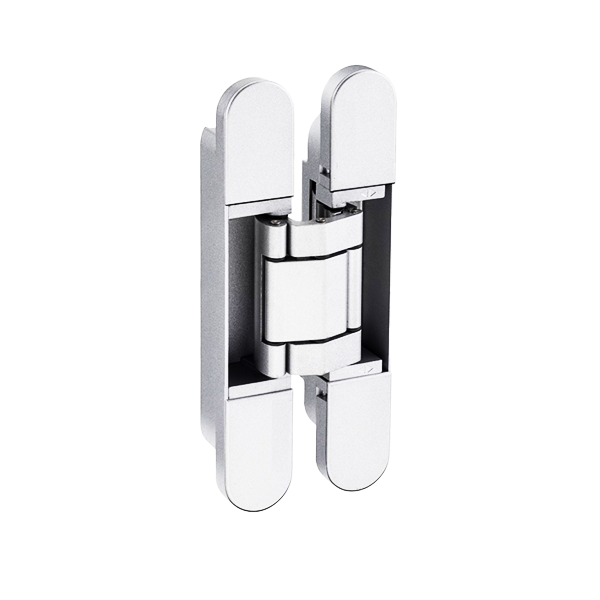

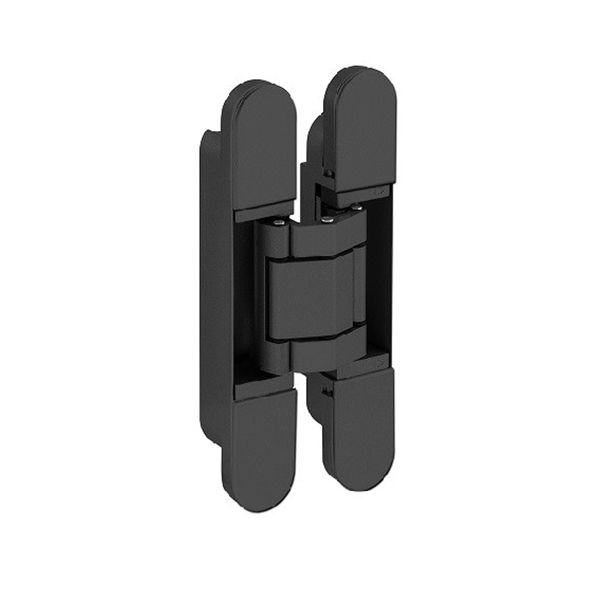

- Available in Stainless Steel, Matt Black and White finishes.
- Can be used on interior or exterior doors.
- These hinges allow three-dimensional adjustment (depth, vertical and horizontal). This means the door can be aligned with the wall to perfection where there is frameless architecture.
- Maximum opening angle of 180 degrees.
- Hinge reversible for right/left doors.
- Comes with Self-lubricating anti-friction washers.
- 7 Year Mechanical Warranty.
